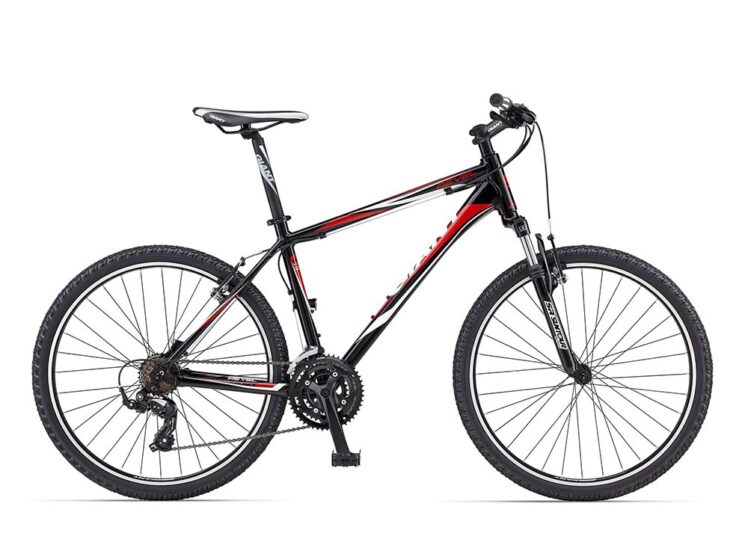

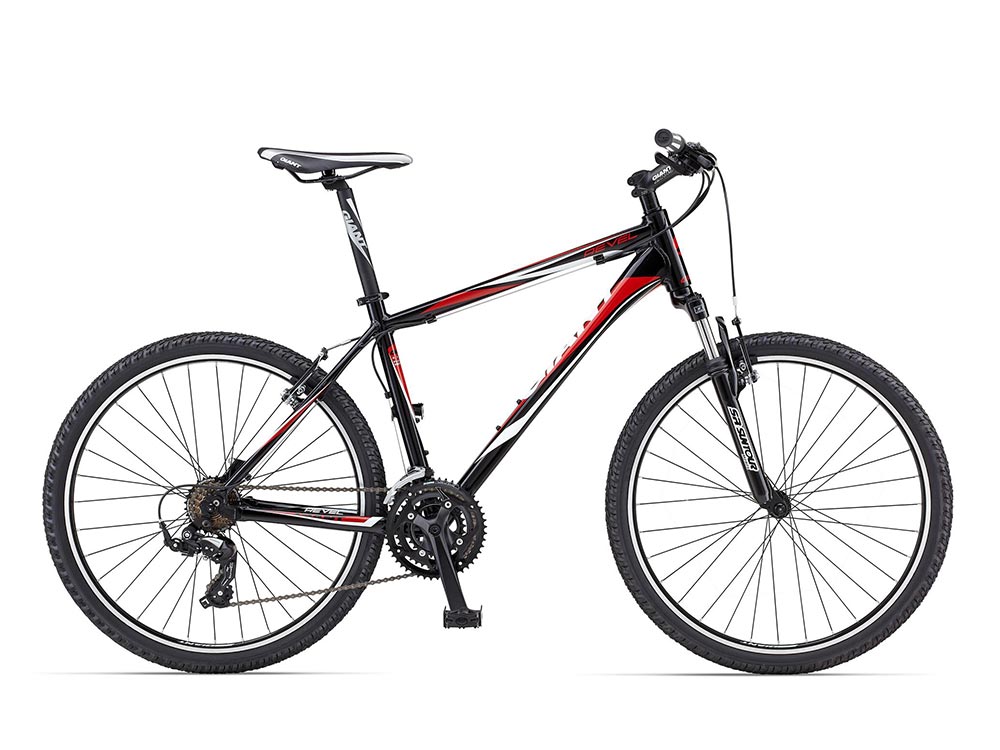

Giant Revel 4
SMOOTH, DEPENDABLE AND READY TO EXPLORE. BLAZE NEW TRAILS WITH THE VERSATILE AND HIGHLY CAPABLE REVEL.
At the core of this entry-level mountain bike lies a lightweight ALUXX frameset designed to handle the specific geometry demands of 26-inch wheels. A smart mix of weight, comfort and affordability are built into each frame, offering the lifestyle off-roader the ruggedness and comfort of a mountain bike.
FRAME
Sizes: Please call for availability
Colors: Black/Red/White
Frame: ALUXX-Grade Butted Aluminium
Fork: SR Suntour M2025, 63mm travel
Shock: N/A
COMPONENTS
Handlebar: Steel 25.4mm, 35mm rise – 600(XS/S), 620(M/L/XL)
Stem: Giant Sport Alloy, 15 degree rise
Seatpost: Alloy 30.9x350mm
Saddle: Giant Sport Trail
Pedals: Nylon platform
DRIVETRAIN
Shifters: Shimano EF40 EZ-Fire, 3×7 speed
Front Derailleur: Shimano Tourney TX50
Rear Derailleur: Shimano Tourney TX55
Brakes: Tektro linear pull
Brake Levers: Shimano EF40
Cassette: Shimano TZ21 14-28, 7s
Chain: KMC Z51
Crankset: SR Suntour NEX 28/38/48 w/ chainguard
Bottom Bracket: SR Suntour Sealed Cartridge
WHEELS
Rims: Giant 6061 Alloy
Hubs: Joytech S01 aluminium thread type – sealed ball bearing hubs
Spokes: Steel 14G
Tires: Giant Sport, 26×2.1″
Related Products
Giant Defy 3
Giant Defy: aluminium road bike engineering at its very best. Light, lively and perfectly balanced between performance and comfort.
2013 Giant Defy is the best road bike in countless magazine tests. Brought to you by the world’s leading aluminium frame engineers, Defy redefines the performance possibilities of an entry-level road bike. Made from premium lightweight aluminium tubes and produced in Giant’s own tubing facility, it climbs, corners and sprints better than bikes costing thousands more. Featuring the same endurance geometry as Cycling Plus Bike of The Year Giant Defy Advanced.
FRAME
Sizes: Please call for availability
Colours: Black/White/Silver
Frame: ALUXX SL-Grade Aluminium
Fork: Advanced-Grade Composite, Alloy OverDrive Steerer
Shock: N/A
COMPONENTS
Handlebar: Giant Sport
Stem: Giant Sport – 31.8
Seatpost: Giant Sport
Saddle: Giant Defy saddle
Pedals: Wellgo w/ toe clip
DRIVETRAIN
Shifters: Shimano Sora
Front Derailleur: Shimano Sora (Triple)
Rear Derailleur: Shimano Sora (long cage)
Brakes: Shimano Sora
Brake Levers: Shimano Sora
Cassette: Shimano HG50 – 12×27, 9s
Chain: KMC X9.73
Crankset: FSA Tempo Compact – 50×34
Bottom Bracket: FSA BB-7420ST
WHEELS
Rims: Giant S-R2
Hubs: Giant 24/28h
Spokes: Stainless Steel, 14g
Tires: Giant S-R4, 700x25c
Torpado T600 Scorpion Disc
Torpado T600 Scorpion Disc
FRAME
Colours: Black/Green
Frame: Full Suspended
Fork: G.W. 715
Shock: Yes
COMPONENTS
Gears: Shimano TX35
Shifting: EF-40 7×3
Chainwheel: Triple MTB
Freewheel: Shimano MFZ7
Brakes: V-Brakes Aluminium
Wheels: Torpado
Tyres: 24×1.90
Stem: AHEAD SET C56 ALU
Handlebar: DH MTB 153
Seat post: Chrome Steel
Saddle: Torpado F527
Giant Reign 1
SLIPPERY ROOTS, WHEEL-EATING RUTS, BABYHEAD ROCKS. WHEN THE TRAIL GETS ROUGH, REMIND IT WHO’S BOSS.
At the core of this trail-devouring monster lies an ALUXX SL frameset-the lightest alloy 6-inch travel full suspension in Giant’s history. Radically hydroformed and using the latest, lightweight co-pivot design, the Reign frameset pushes aluminum full suspension bike technology to new limits of weight, strength and performance.
FRAME
Sizes: Please call for availability
Colors: Light Blue/Black/White
Frame: ALUXX SL-Grade Aluminium, 6″ Maestro Suspension
Fork: Fox 32 TALAS O/C CTD Evolution w/ 15QR Thru-Axle and OverDrive 2 Steerer, 150/120mm Travel
Shock: Fox FLOAT CTD Boost Valve
COMPONENTS
Handlebar: Giant Connect SL Trail, Low Rise 31.8, 730mm width
Stem: Giant Connect SL, OverDrive-2
Seatpost: Giant Contact Switch-R, 30.9
Saddle: Giant Performance Trail
Pedals: N/A
DRIVETRAIN
Shifters: Shimano SLX 2×10 Speed
Front Derailleur: Shimano SLX, Direct Mount
Rear Derailleur: Shimano SLX 10-Speed, Shadow+
Brakes: Shimano SLX, 180mm rotors
Brake Levers: Shimano SLX
Cassette: Shimano HG62 11-36, 10 speed
Chain: KMC X-10
Crankset: Shimano SLX, 26/38
Bottom Bracket: Shimano integrated
WHEELS
Rims: DT Swiss E540
Hubs: [F] Giant Tracker Sealed/CNC w/ 15mm Axle, [R] Giant P-series
Spokes: Stainless Steel, 14/15g
Tires: Schwalbe Nobby Nic, 26×2.25 TL Ready EVO Folding
Giant XTC 27.5 0 Team
There's nothing like the feeling of riding a classic hardtail, except this – trusted XtC design updated for bang up to date 27.5 wheels. Race it, win it, love it.
With its ALUXX SL frameset and 27.5 geometry, the XtC 27.5 blends quickness and control. The proprietary ALUXX SL alloy from Giant's own forging facilities is stiffer and lighter than 6061-series aluminum, while PowerCore – a massively oversized bottom bracket/chainstay area with fully integrated 86mm BB and asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside for unprecedented pedalling stiffness.
FRAME
Sizes: Please call for availability
Colors: Black/Blue
Frame: ALUXX SL-Grade Aluminum
Fork: Fox 32 Float CTD Evolution 27.5″, 100mm Travel, QR15, OverDrive 2 Tapered Steerer
Shock: N/A
COMPONENTS
Handlebar: Giant Connect XC, 19mm rise, 690 x 31.8mm
Stem: Giant Connect SL, OverDrive 2, 8 degree rise
Seatpost: Giant Connect SL, 27.2x375mm
Saddle: Giant Contact (Forward)
Pedals: N/A
DRIVETRAIN
Shifters: Shimano XT, 2x10s
Front Derailleur: Shimano XT
Rear Derailleur: Shimano XT Shadow+, 10s
Brakes: Shimano XT, M785
Brake Levers: Shimano XT, M785
Cassette: Shimano HG62 11-36, 10s
Chain: KMC X10 w/ Missing Link
Crankset: Shimano XT 38/26
Bottom Bracket: Shimano Press-Fit
WHEELS
Rims: Giant P-XC2 27.5
Hubs: Giant Tracker, sealed bearings [F] QR15 Thru-Axle, [R] 135×5 QR
Spokes: Stainless, double-butted, black w/ alloy nipples
Tires: Schwalbe Racing Ralph 27.5×2.1″, Folding Performance
Giant Reign X2
WHEN YOU’RE RIDING AGGRESSIVE ALL-MOUNTAIN TERRAIN, STUFF HAPPENS AND IT HAPPENS FAST. BE READY WITH REIGN X.
At the core of this terrain-devouring beast lies an ALUXX SL frameset-the lightest alloy 6.7-inch travel full suspension in Giant’s history. Radically hydroformed and using the latest, lightweight co-pivot design, the Reign X frameset pushes aluminum full suspension bike technology to new limits of weight, strength and performance.
FRAME
Sizes: Please call for availability
Colours: Black/Burgundy
Frame: ALUXX SL-Grade Aluminum, 6.7″ Maestro Suspension
Fork: RockShox Lyric R Coil w/ 20mm Thru Axle and OverDrive 2 Steerer, 160mm Travel
Shock: RockShox Kage R, Coil
COMPONENTS
Handlebar: Giant Contact AM, 750mm, 31.8
Stem: Giant Contact AM, OverDrive 2
Seatpost: Giant Connect SL, 30.9
Saddle: Fi'zi:k Nisene w/ 7mm Manganese Rails
Pedals: Giant Alloy Platform
DRIVETRAIN
Shifters: SRAM X5, 2×9 Speed
Front Derailleur: Shimano M665 Double Specific
Rear Derailleur: SRAM X7
Brakes: Avid Elixir 3, [F] 180mm [R] 160mm
Brake Levers: Avid Elixir 3
Cassette: SRAM PG-950 11-34, 9-Speed
Chain: Shimano HG-73
Crankset: SRAM GXP-2 24/36 w/ MRP LRP Guide
Bottom Bracket: SRAM GXP
WHEELS
Rims: Giant P-AM2
Hubs: [F] Giant Tracker w/ 20mm Axle, [R] Giant w/ 12mm Maxle QR, 32h
Spokes: Stainless Steel, 14/15g
Tires: Maxxis Minion DHF, 26x 2.35 Folding
Torpado T1000 Destriero
Torpado T1000 Destriero
FRAME
Colours: Red/White and Black/Grey
Frame: Aluminium 6061
Fork: Aluminium 6061
COMPONENTS
Gears: Campagnolo Xenon 9S
Shifting: Campagnolo Ergopower 9S
Chainwheel: Torpado Corsa Doppia
Brakes: Promax 462
Wheels: Torpado Corsa
Tyres: CST 700×25
Stem: TDS-C56
Handlebar: DR-AL48
Seat post: Torpado SP-222
Saddle: Torpado Corsa
Pedals: With Straps
Torpado T611 Kelly
Torpado T611 Kelly
FRAME
Colours: Light Blue/White
Frame: Monotube HI-TEN
Fork: HI-TEN (TIG)
Shock: N/A
COMPONENTS
Gears: Shimano TX35
Shifting: Shimano RS31 6V
Chainwheel: 40/150 Steel
Freewheel: Shimano 6V
Brakes: V-Brakes Aluminium
Wheels: Torpado Aluminium
Tyres: 24×1.75
Stem: HI TEN SLU80
Handlebar: HI TEN MB 046
Seat post: Alu
Saddle: Torpado
Torpado T440 Majesty
Torpado T440 Majesty
FRAME
Colours: White/Silver
Frame: Aluminium 6061
Fork: HI-TEN (TIG)
Shock: N/A
COMPONENTS
Gears: Shimano TX35 21V
Shifting: Shimano RS35 21V
Chainwheel: CTL6 42/170
Freewheel: Shimano MFZ-7
Brakes: V-Brakes Aluminium
Wheels: Torpado Aluminium
Tyres: 700x38C
Stem: Multset Alu
Handlebar: Alu HBT 313
Seat post: Alu SP-213
Saddle: Torpado Comfort
