Mountain Bikes

There’s nothing like the feeling of riding a classic hardtail, except this – trusted XtC design updated for bang up to date 29″ wheels. Race it, win it, love it.

With its ALUXX SL frameset and 29″ geometry, the XtC 29″ blends quickness and control. The proprietary ALUXX SL alloy from Giant’s own forging facilities is stiffer and lighter than 6061-series aluminum, while PowerCore – a massively oversized bottom bracket/chainstay area with fully integrated 86mm BB and asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside for unprecedented pedalling stiffness.

FRAME
Sizes: Please call for availability
Colors: Amber Glow, Metallic Black
Frame: ALUXX SLR-Grade Aluminum
Fork: Giant Crest 34 RRL, 100mm, 15×110, remote lockout
Shock: N/A

COMPONENTS
Handlebar: Giant Connect XC, 740×31.8mm
Stem: Giant Contact
Seatpost: Giant Connect, 30.9mm
Saddle: Giant Sport
Pedals: N/A

DRIVETRAIN
Shifters: Shimano SLX M-7100, 1×12
Front Derailleur: N/A
Rear Derailleur: Shimano Deore XT M-8100
Brakes: Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers: Shimano BR-MT501
Cassette: Shimano SLX, 10×51
Chain: KMC X-12
Crankset: Shimano SLX, 32t
Bottom Bracket: Shimano, press fit

WHEELS
Rims: Giant XCT 29” alloy, 25mm inner width
Hubs: Shimano MT410B, sealed
Spokes: stainless
Tires: Maxxis Recon Race 29×2.25, foldable, TLR, EXO, tubeless

GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.

Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.

KEY PERFORMANCE FACTORS

Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

Sizes: Please call for sizing
Colours: Good Gray, Amber Glow, Black Chrome
Frame: ALUXX-Grade Aluminum, disc
Fork: SR Suntour XCE, QR, steel steerer
Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: MTB caged
Shifters: microSHIFT, 2×8
Front Derailleur: microSHIFT FD-M282
Rear Derailleur: Shimano Altus M310
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDC M275
Cassette: Shimano Deore HG200, 12×32
Chain: KMC 8.3
Crankset: Shimano FC-M315, 22/36
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: Alloy, sealed bearing
Spokes: Stainless, 14G
Tires: Kenda Booster 27.5 or 29×2.2″, wire bead

FRAME MTB STEEL 29ER
FORK G.W. 29ER N781S SUSPENDED
GEAR SHIMANO TY300 8V
SHIFTING KD-81 8×3 STI
CHAINWHEEL TRIPLA MTB 24/34/42
BRAKES MECHANICAL DISC
WHEELS ESPERIA 29ER
SIZE Please call for Sizing
STEERING COLUMN AHEAD-SET ALUMINIUM
WHEEL FREE FW30 13-28 8V INDEX
SADDLE DDK SA 5311
TYRES 29X2.10 BLACK

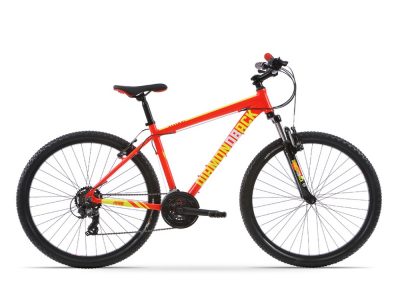

MTB 27.5” SHIMANO ACERA 7X3 DISC

FRAME MTB 27.5” Aluminium 6061
FORK 330 ML 27.5″
GEAR Shimano Acera M-360
SHIFTING Shimano EF-417 7×3
BRAKES Mechanical Disc MDA-08
WHEELS Torpado Disc 650B
SIZE Please call for Sizing
CRANKSET CPI 24/34/42
STEERING COLUMN Torpado D6500 Alu FOV
FOLD Torpado FOV W680
WHEEL FREE Shimano 14-28 7V
SADDLE Torpado MTB SA-5311
CANNOTTO Torpado SP-222 31.6×350
COPERTURE 650B x 2.10 Kenda

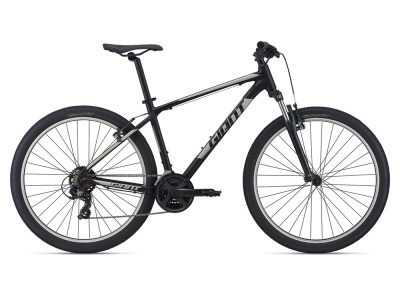

From forest trails to canal paths and everything in between, this versatile bike can add some spice to your commute or fitness routine. With its flat handlebar, upright positioning and suspension fork, it’s cool and capable on-road or off-road.

With a rugged personality and a smooth riding style, ATX features the familiar flat-handlebar look of a traditional mountain bike. It has a lightweight yet durable ALUXX aluminium frame and a suspension fork with 100mm of smooth travel to soak up bumps. The wheel diameter varies based on bike size, with 26-inch wheels on smaller frames and 27.5 on larger ones (ATX 2 & 3 only). This tailors the bike’s handling to a rider’s height. Powerful disc brakes deliver confident handling in all types of weather, and integrated mounts make it easy to add racks or fenders to suit your riding adventures.

Sizes: Please call for availability
Colours: Black, Vibrant Blue
Frame: ALUXX-Grade Aluminium
Fork: SR Suntour XCE 28, coil, preload, 80mm travel
Handlebar: Giant Sport, alloy, 25.4mm
Stem: Giant Sport, alloy, 15-degree
Seat post: Giant Sport, 30.9mm
Saddle: Giant Sport
Pedals: Platform
Shifters: Shimano EF41, 3×7
Front Derailleur: Shimano Tourney
Rear Derailleur: Shimano Tourney
Brakes: MTB linear pull
Brake Levers: Shimano EF41
Cassette: Shimano MF-TZ500, 14×28
Chain: KMC Z7
Crankset: ProWheel forged, 24/34/42
Bottom Bracket: Cartridge
Rims: Giant alloy
Hubs: alloy, sealed bearing
Spokes: stainless, 14G
Tires: Giant Quickcross, 27.5×2.1″ / 26×2.1″

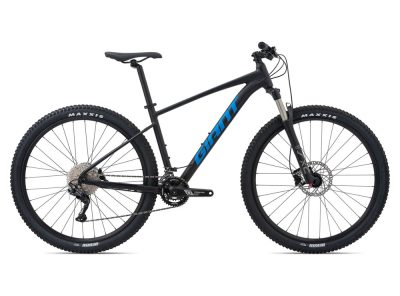

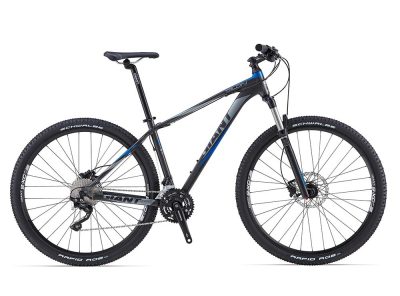

GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.

Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.

KEY PERFORMANCE FACTORS

Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

Sizes: Please call for sizing
Colours: Black, Hematite
Frame: ALUXX-Grade Aluminum, disc
Fork: SSXC32-2 RL 29, air spring, QR, alloy steerer
Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: MTB caged
Shifters: Shimano Deore M5100, 2×11
Front Derailleur: Shimano Deore M5100
Rear Derailleur: Shimano Deore M4100
Brakes: Shimano Deore BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm,
[R]160mm
Brake Levers: Shimano Deore BL-MT200
Cassette: Shimano Deore M5100, 11×42
Chain: KMC X11
Crankset: Praxis Cadet M24, 26/36
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: Alloy, sealed bearing
Spokes: Stainless, 14G
Tires: Kenda Booster 27.5 or 29×2.4″, wire bead

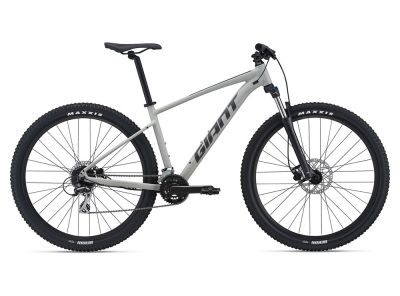

GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.

Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.

KEY PERFORMANCE FACTORS

Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

Sizes: Please call for sizing
Colours: Metallic Black
Frame: ALUXX-Grade Aluminum
Fork: SR Suntour XCE 29 or 27.5, air spring, 100mm or 80mm, QR, alloy steerer, lockout
Handlebar: Giant Connect Trail, 780mm x 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: Resin Anti-slip
Shifters: Shimano SL-M315
Front Derailleur: Shimano FD-M315
Rear Derailleur: Shimano Tourney
Brakes: Tektro TKD 143, hydraulic
Brake Levers: Tektro TKD 143, hydraulic
Cassette: Shimano MF-TZ500, 14×28
Chain: KMC Z7
Crankset: ProWheel forged, 22/36
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: [F]Giant Tracker Sport QR, loose ball [R] Giant Tracker Sport QR, loose ball
Spokes: Stainless, 14G
Tires: Maxxis Ikon 27.5 or 29×2.2, wire bead

WANT TO RIDE LIKE DOWNHILL WORLD CHAMPION DANNY HART? YOU CAN START BY GETTING ON HIS BIKE.

At the core of this competition-oriented downhill flyer is an impressively light, strong and agile frameset. The radically hydroformed tubeset utilizes the latest, lightweight co-pivot design to shed grams while maintaining outstanding stiffness and durability

FRAME
Sizes: Please call for availability
Colors: White/Black/Light Blue
Frame: ALUXX SL-Grade Aluminium, 8″ Maestro Suspension
Fork: RockShox BoXXer R2C2, 8″ travel, Coil, adj. beginning and ending-stroke rebound, high and low-speed compression
Shock: RockShox Vivid R2 Air [differs from picture]

COMPONENTS
Handlebar: Giant Contact AM, Low Rise, 750mm, 31.8
Stem: Giant Contact DH, Direct Mount
Seatpost: Giant Contact, 30.9
Saddle: Fi’zi:k Tundra 2 w/ Manganese Rails
Pedals: N/A

DRIVETRAIN
Shifters: SRAM X7, 1×10 Speed
Front Derailleur: N/A
Rear Derailleur: SRAM X9 Type 2, 10-Speed
Brakes: Avid Elixir 7, [F] 200mm [R] 180mm rotors
Brake Levers: Avid Elixir 7
Cassette: SRAM PG1070, 11×26 10-Speed
Chain: KMC X-10
Crankset: Truvativ Descendant 36T w/ MRP G2 Mini SL
Bottom Bracket: SRAM GXP

WHEELS
Rims: DT Swiss EX-500
Hubs: [F] Giant Tracker 20mm Thru-Axle, [R] DT 350 12 mm Thru-Axle, 32h
Spokes: DT Competition, 14/15g
Tires: Schwalbe Muddy Mary, Evolution DH, 26×2.5

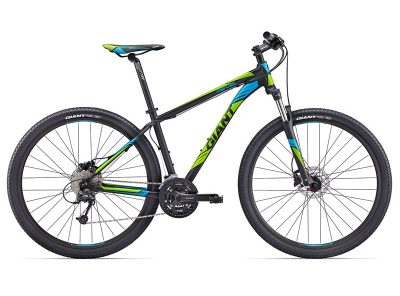

Giant Revel Ltd: smooth, dependable and ready to explore. BLaze new trails with the versatile and highLy capable Revel Ltd.

2013 Giant Revel Ltd mens mountain bike has a smart, durable and lightweight ALUXX Aluminium frame built to optimise its 100-millimetre suspension fork, Revel Ltd offers a stable, comfortable ride. Equally at home on a gravel bike path or more challenging trails, it’s outfitted with quality components for a fun, reliable ride.

FRAME
Sizes: Please call for availability
Colours: Satin Black/Blue
Frame: ALUXX-Grade Butted Aluminium
Fork: Rock Shox XC 28 TK, 100mm w/ PopLoc remote Lock-out
Shock: N/A

COMPONENTS
Handlebar: Giant Sport alloy low riser 31.8mm
Stem: Giant Sport
Seatpost: Giant Sport
Saddle: Giant Sport Trail
Pedals: Steel with resin body

DRIVETRAIN
Shifters: Shimano SLX, 3×10 speed
Front Derailleur: Shimano Deore
Rear Derailleur: Shimano XT
Brakes: Tektro HDC300 hydraulic disc, 160mm rotors
Brake Levers: Tektro HDC300
Cassette: Shimano HG62 11-34, 10s
Chain: KMC X-10
Crankset: FSA Gamma Drive Mega Exo 42/32/24
Bottom Bracket: FSA Mega Exo

WHEELS
Rims: Giant CR70 Double Wall
Hubs: Giant S-Elite
Spokes: Black Stainless Steel
Tyres: Giant Sport 26×2.1″
