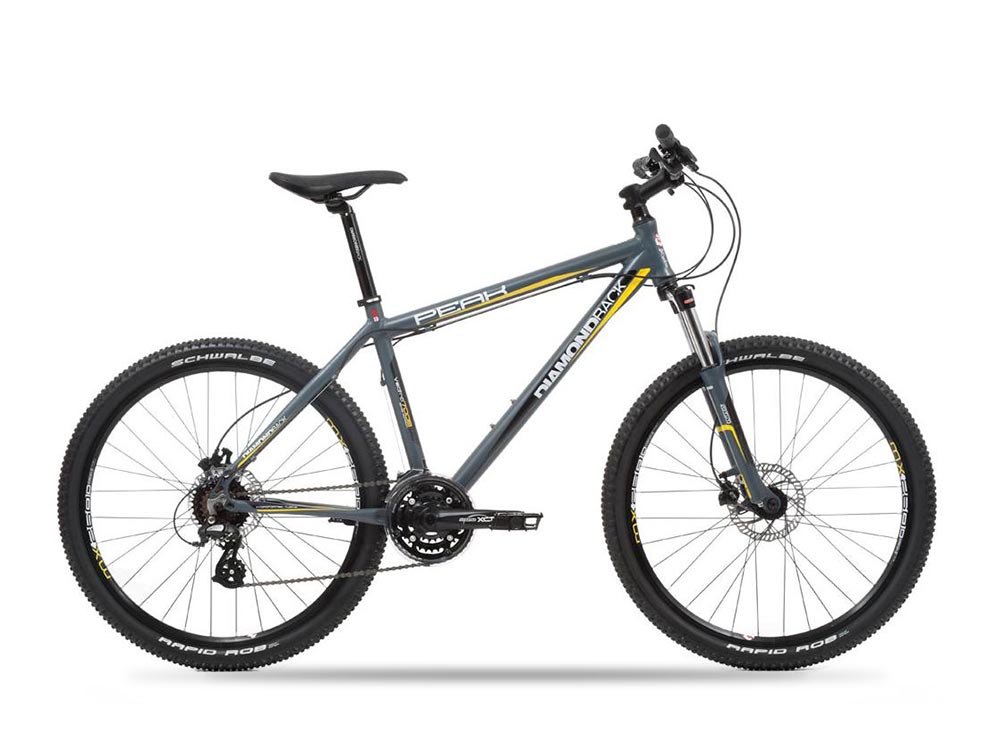

Diamondback Peak
These bikes feature all that we learned from the development of the new trail frames, but they are designed around a smaller travel fork for the rider that want to use their bike for everything from the local singletrack to the ride to work. The Peak brings you the same top brand name components, and tough all day geometry frame but with the upgrade of ektro HCC-300 hydraulic brakes.
Frame: Alloy Vectra All Mountain Hydroformed frame
Forks: Suntour XCT-LO 100mm with Lockout
Gearset: 24 speed Shimano Acera with Suntour XCT cranks 42/32/22T
Brakeset: Tektro HCC-300 hydraulic disc brakes for extra control
Wheelset: Alloy Diamondback doublewall rims on Alloy quick release disc hubs with MTB style tyres
Controls: Diamondback lo-rise Bar 680mm width and Outland stem
Tyres: Schwalbe Rapid Rob 26×2.25″ tyres
Finishing Kit: Outland Trail saddle with Outland micro adjust seatpost
Related Products
Giant Talon 1 29ER – Hematite
GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.
Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
KEY PERFORMANCE FACTORS
Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Sizes: Please call for sizing
Colours:Hematite
Frame: ALUXX-Grade Aluminum, disc
Fork: SSXC32-2 RL 29, air spring, QR, alloy steerer
Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: MTB caged
Shifters: Shimano Deore M4100, 1×10
Front Derailleur: N/A
Rear Derailleur: Shimano Deore M5120
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDC M275
Cassette: Shimano Deore M4100, 11×42
Chain: KMC X10
Crankset: ProWheel Charm, 30t (27.5) or 32t (29)
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: Alloy, sealed bearing
Spokes: Stainless, 14G
Tires: Kenda Booster 27.5 or 29×2.4″, wire bead
Giant XTC 27.5 0 Team
There's nothing like the feeling of riding a classic hardtail, except this – trusted XtC design updated for bang up to date 27.5 wheels. Race it, win it, love it.
With its ALUXX SL frameset and 27.5 geometry, the XtC 27.5 blends quickness and control. The proprietary ALUXX SL alloy from Giant's own forging facilities is stiffer and lighter than 6061-series aluminum, while PowerCore – a massively oversized bottom bracket/chainstay area with fully integrated 86mm BB and asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside for unprecedented pedalling stiffness.
FRAME
Sizes: Please call for availability
Colors: Black/Blue
Frame: ALUXX SL-Grade Aluminum
Fork: Fox 32 Float CTD Evolution 27.5″, 100mm Travel, QR15, OverDrive 2 Tapered Steerer
Shock: N/A
COMPONENTS
Handlebar: Giant Connect XC, 19mm rise, 690 x 31.8mm
Stem: Giant Connect SL, OverDrive 2, 8 degree rise
Seatpost: Giant Connect SL, 27.2x375mm
Saddle: Giant Contact (Forward)
Pedals: N/A
DRIVETRAIN
Shifters: Shimano XT, 2x10s
Front Derailleur: Shimano XT
Rear Derailleur: Shimano XT Shadow+, 10s
Brakes: Shimano XT, M785
Brake Levers: Shimano XT, M785
Cassette: Shimano HG62 11-36, 10s
Chain: KMC X10 w/ Missing Link
Crankset: Shimano XT 38/26
Bottom Bracket: Shimano Press-Fit
WHEELS
Rims: Giant P-XC2 27.5
Hubs: Giant Tracker, sealed bearings [F] QR15 Thru-Axle, [R] 135×5 QR
Spokes: Stainless, double-butted, black w/ alloy nipples
Tires: Schwalbe Racing Ralph 27.5×2.1″, Folding Performance
Giant Talon 3 – Good Gray
GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.
Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
KEY PERFORMANCE FACTORS
Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Sizes: Please call for sizing
Colours: Good Gray, Amber Glow, Black Chrome
Frame: ALUXX-Grade Aluminum, disc
Fork: SR Suntour XCE, QR, steel steerer
Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: MTB caged
Shifters: microSHIFT, 2×8
Front Derailleur: microSHIFT FD-M282
Rear Derailleur: Shimano Altus M310
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDC M275
Cassette: Shimano Deore HG200, 12×32
Chain: KMC 8.3
Crankset: Shimano FC-M315, 22/36
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: Alloy, sealed bearing
Spokes: Stainless, 14G
Tires: Kenda Booster 27.5 or 29×2.2″, wire bead
Giant Revel 0 Limited
Giant Revel Ltd: smooth, dependable and ready to explore. BLaze new trails with the versatile and highLy capable Revel Ltd.
2013 Giant Revel Ltd mens mountain bike has a smart, durable and lightweight ALUXX Aluminium frame built to optimise its 100-millimetre suspension fork, Revel Ltd offers a stable, comfortable ride. Equally at home on a gravel bike path or more challenging trails, it’s outfitted with quality components for a fun, reliable ride.
FRAME
Sizes: Please call for availability
Colours: Satin Black/Blue
Frame: ALUXX-Grade Butted Aluminium
Fork: Rock Shox XC 28 TK, 100mm w/ PopLoc remote Lock-out
Shock: N/A
COMPONENTS
Handlebar: Giant Sport alloy low riser 31.8mm
Stem: Giant Sport
Seatpost: Giant Sport
Saddle: Giant Sport Trail
Pedals: Steel with resin body
DRIVETRAIN
Shifters: Shimano SLX, 3×10 speed
Front Derailleur: Shimano Deore
Rear Derailleur: Shimano XT
Brakes: Tektro HDC300 hydraulic disc, 160mm rotors
Brake Levers: Tektro HDC300
Cassette: Shimano HG62 11-34, 10s
Chain: KMC X-10
Crankset: FSA Gamma Drive Mega Exo 42/32/24
Bottom Bracket: FSA Mega Exo
WHEELS
Rims: Giant CR70 Double Wall
Hubs: Giant S-Elite
Spokes: Black Stainless Steel
Tyres: Giant Sport 26×2.1″
Giant Talon 4
GET A FEEL FOR THE TRAIL WITH THIS CLASSIC HARDTAIL MADE FOR ASPIRING SINGLETRACK RIDERS. IT FEATURES LARGER DIAMETER 29-INCH WHEELS THAT GIVE IT ADDED STABILITY ON XC TERRAIN—SO YOU CAN PUSH THE PACE ON CLIMBS AND LET LOOSE ON THE DESCENTS.
Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
KEY PERFORMANCE FACTORS
Proven alloy performance – ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability – Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control – Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Sizes: Please call for sizing
Colours: Eclipse
Frame: ALUXX-Grade Aluminum
Fork: SR Suntour XCE 29 or 27.5, air spring, 100mm or 80mm, QR, alloy steerer, lockout
Handlebar: Giant Connect Trail, 780mm x 31.8mm
Stem: Giant Sport, 7-degree
Seat post: Giant Sport, 30.9
Saddle: Giant Custom
Pedals: Resin Anti-slip
Shifters: Shimano SL-M315
Front Derailleur: Shimano FD-M315
Rear Derailleur: Shimano Tourney
Brakes: Tektro TKD 172, mechanical
Brake Levers: RS360A
Cassette: Shimano MF-TZ500, 14×28
Chain: KMC Z7
Crankset: ProWheel forged, 22/36
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: [F]Giant Tracker Sport QR, loose ball [R] Giant Tracker Sport QR, loose ball
Spokes: Stainless, 14G
Tires: Maxxis Ikon 27.5 or 29×2.2, wire bead
Torpado T540 Brave Soul
Torpado T540 Brave Soul
FRAME
Colours: White
Frame: Full Suspension Aluminium
Fork: Suntour XCT ML0
Shock: Yes
COMPONENTS
Gears: Shimano Alivio
Shifting: Shimano SLM-31D
Chainwheel: Shimano M 171
Freewheel: Shimano MFZ-7
Brakes: Promax Dsk-907
Wheels: Torpado Disk
Tyres: Maxxis 26 x 1.95
Stem: Torpado Aheadset Alu
Handlebar: Torpado ALU FOV
Seat post: Torpado ALU
Saddle: Torpado FT 5207
Torpado Krypton – T795 BLACK/GREEN
MTB 27.5” SHIMANO TY300 7X3 V-BRAKE
FRAME MTB 27.5″ Steel
FORK Torpado G.W. 781
GEAR Shimano TY300
SHIFTING Shunfeng SL-370 7×3
BRAKES V-Brake Aluminium
WHEELS Torpado 27.5”
SIZE Please call for Sizing
CRANKSET 24/34/42×170
STEERING COLUMN Torpado D6500 FOV
FOLD Torpado W680 FOV
WHEEL FREE 7V 14-28 index
SADDLE Torpado MTB SA-5310
CANNOTTO Torpado 31.6×300 Steel Black
COPERTURE 650B x 2.10 Kenda
Torpado Delta – T740
MTB 29” SHIMANO ACERA 21V V-BRAKE
FRAME : MTB 29” Aluminium 6061
FORK : Torpado G.W. 781
GEAR : Shimano Altus RD-M310
SHIFTING : Shimano EF417 7×3
BRAKES : FRONT Disc Brake Rear V-Brake
WHEELS : Torpado 29”
CRANKSET : Cyclone MTB Tripla
STEERING COLUMN : Aheadset Aluminium FOV
FOLD : Torpado FOV W680
FREEWHEEL : Shimano TZ-14/28
SADDLE : Torpado MTB 5310
SEATPOST : Torpado SP-222 31.6×350
TIRES : 29 x 2.10 Kenda
